X.레이어마스크 해결

본 강좌는 케이디님의 유튜브강좌 영상을 보고 유니티6로 구현한 것 입니다 이렇게 멋진 강좌를 만드신 케이디님을 존경합니다

using System.Collections;
using System.Collections.Generic;
using System.Runtime.InteropServices;
using UnityEngine;

public class GunController : MonoBehaviour
{
    //활성화 여부
    public static bool isActivate = false;

    //현재 장착된 총
    [SerializeField]
    private Gun currentGun;
    //연사속도 계산
    private float currentFireRate;//정조준 위치를 위한 값

    //상태변수
    private bool isReload = false;
    [HideInInspector]//인스팩터에세 숨김
    public bool isFineSightMode = false;//정조준 위치 bool 값

    // 본래 포지션 값.
    [SerializeField]
    private Vector3 originPos;//원래 조준위치

    //효과음
    private AudioSource audioSource;

    //레이져 충돌 정도 받아옴
    private RaycastHit hitInfo;
    [SerializeField]
    private LayerMask layerMask;

    //필요한 카메라 컴포넌트
    [SerializeField]
    private Camera theCam;
    private Crosshair theCrosshair;

    //피격 이팩트
    [SerializeField]
    private GameObject hit_effect_prefab;

    void Start()
    {
        originPos = Vector3.zero;
        audioSource = GetComponent<AudioSource>();
        theCrosshair = FindAnyObjectByType<Crosshair>();


    }

    // Update is called once per frame
    void Update()
    {
        if (isActivate)
        {
            GunFireRateCalc();
            TryFire();
            TryReload();
            TryFineSight();
        }
    }

    //연사속도 재계산
    private void GunFireRateCalc()
    {
        if (currentFireRate > 0)
            currentFireRate -= Time.deltaTime;
    }

    //발사시도
    private void TryFire()
    {
        if (Input.GetButton("Fire1") && currentFireRate <= 0 && !isReload)
        {
            Fire();
        }
    }

    //발사전 계산
    private void Fire()
    {
        if (!isReload)
        {
            if (currentGun.currentBulletCount > 0)
                Shoot();
            else
            {
                CancelFineSight();
                StartCoroutine(ReloadCoroutine());
            }


        }
    }

    //발사 후 계산
    private void Shoot()
    {
        theCrosshair.FireAnimation();
        currentGun.currentBulletCount--;
        currentFireRate = currentGun.fireRate; // 연사 속도 재계산.
        PlaySE(currentGun.fire_Sound);
        currentGun.muzzleFlash.Play();
        Hit();
        StopAllCoroutines();
        StartCoroutine(RetroActionCoroutine());
    }

    private void Hit()
    {
        if (Physics.Raycast(theCam.transform.position, theCam.transform.forward +
            new Vector3(Random.Range(-theCrosshair.GetAccuracy() - currentGun.accuracy, theCrosshair.GetAccuracy() + currentGun.accuracy),
                        Random.Range(-theCrosshair.GetAccuracy() - currentGun.accuracy, theCrosshair.GetAccuracy() + currentGun.accuracy),
                        0), out hitInfo, currentGun.range, layerMask))
        {
            GameObject clone = Instantiate(hit_effect_prefab, hitInfo.point, Quaternion.LookRotation(hitInfo.normal));
            Destroy(clone, 2f);
            //Debug.Log(hitInfo.transform.name);
        }
    }

    //재장전 시도
    private void TryReload()
    {
        if (Input.GetKeyDown(KeyCode.R) && !isReload && currentGun.currentBulletCount < currentGun.reloadBulletCount)
        {
            CancelFineSight();
            StartCoroutine(ReloadCoroutine());
        }
    }

    public void CancelReload()
    {
        if (isReload)
        {
            StopAllCoroutines();
            isReload = false;
        }
    }

    //재장전
    IEnumerator ReloadCoroutine()
    {
        if (currentGun.carryBulletCount > 0)
        {
            isReload = true;

            currentGun.anim.SetTrigger("Reload");


            currentGun.carryBulletCount += currentGun.currentBulletCount;
            currentGun.currentBulletCount = 0;

            yield return new WaitForSeconds(currentGun.reloadTiem);

            if (currentGun.carryBulletCount >= currentGun.reloadBulletCount)
            {
                currentGun.currentBulletCount = currentGun.reloadBulletCount;
                currentGun.carryBulletCount -= currentGun.reloadBulletCount;
            }
            else
            {
                currentGun.currentBulletCount = currentGun.carryBulletCount;
                currentGun.carryBulletCount = 0;
            }


            isReload = false;
        }
        else
        {
            Debug.Log("소유한 총알이 없습니다.");
        }
    }

    //정조준 시도
    private void TryFineSight()
    {
        if (Input.GetButtonDown("Fire2") && !isReload)
        {
            FineSight();
        }
    }

    //정조준 취소
    public void CancelFineSight()
    {
        if (isFineSightMode)
            FineSight();
    }

    //정조준 로직가동
    private void FineSight()
    {
        isFineSightMode = !isFineSightMode;
        currentGun.anim.SetBool("FineSightMode", isFineSightMode);
        theCrosshair.FineingAnimation(isFineSightMode);
        if (isFineSightMode)
        {
            StopAllCoroutines();
            StartCoroutine(FineSightActivateCoroutine());
        }
        else
        {
            StopAllCoroutines();
            StartCoroutine(FineSightDeactivateCoroutine());
        }

    }

    //정조준 활성화
    IEnumerator FineSightActivateCoroutine()
    {
        while (currentGun.transform.localPosition != currentGun.fineSightOriginPos)
        {
            currentGun.transform.localPosition = Vector3.Lerp(currentGun.transform.localPosition, currentGun.fineSightOriginPos, 0.2f);
            yield return null;
        }
    }

    //정조준 비활성화
    IEnumerator FineSightDeactivateCoroutine()
    {
        while (currentGun.transform.localPosition != originPos)
        {
            currentGun.transform.localPosition = Vector3.Lerp(currentGun.transform.localPosition, originPos, 0.2f);
            yield return null;
        }
    }

    //총 반동
    IEnumerator RetroActionCoroutine()
    {
        Vector3 recoilBack = new Vector3(currentGun.retroActionForce, originPos.y, originPos.z);
        Vector3 retroActionRecoilBack = new Vector3(currentGun.retroActionFineSightForce, currentGun.fineSightOriginPos.y, currentGun.fineSightOriginPos.z);

        if (!isFineSightMode)
        {

            currentGun.transform.localPosition = originPos;

            // 반동 시작
            while (currentGun.transform.localPosition.x <= currentGun.retroActionForce - 0.02f)
            {
                currentGun.transform.localPosition = Vector3.Lerp(currentGun.transform.localPosition, recoilBack, 0.4f);
                yield return null;
            }

            // 원위치
            while (currentGun.transform.localPosition != originPos)
            {
                currentGun.transform.localPosition = Vector3.Lerp(currentGun.transform.localPosition, originPos, 0.1f);
                yield return null;
            }
        }
        else
        {
            currentGun.transform.localPosition = currentGun.fineSightOriginPos;

            // 반동 시작
            while (currentGun.transform.localPosition.x <= currentGun.retroActionFineSightForce - 0.02f)
            {
                currentGun.transform.localPosition = Vector3.Lerp(currentGun.transform.localPosition, retroActionRecoilBack, 0.4f);
                yield return null;
            }

            // 원위치
            while (currentGun.transform.localPosition != currentGun.fineSightOriginPos)
            {
                currentGun.transform.localPosition = Vector3.Lerp(currentGun.transform.localPosition, currentGun.fineSightOriginPos, 0.1f);
                yield return null;
            }
        }

    }

    //사운드 재생
    private void PlaySE(AudioClip _clip)
    {
        audioSource.clip = _clip;
        audioSource.Play();
    }

    public Gun GetGun()
    {
        return currentGun;
    }

    public bool GetFineSightMode()
    {
        return isFineSightMode;
    }

    public void GunChange(Gun _gun)
    {
        if(WeaponManager.currentWeapon != null)
            WeaponManager.currentWeapon.gameObject.SetActive(false);

        currentGun = _gun;
        WeaponManager.currentWeapon = currentGun.GetComponent<Transform>();
        WeaponManager.currentWeaponAnim = currentGun.anim;

        currentGun.transform.localPosition = Vector3.zero;
        currentGun.gameObject.SetActive(true);
        isActivate = true;
    }
}

using System.Collections;
using UnityEngine;

public abstract class CloseWeaponController : MonoBehaviour//abstract 자식클레스에서 완성시키는 추상클레스
{
    //현재 장착된 Hand형 타입 무기
    [SerializeField]
    protected CloseWeapon currentCloseWeapon;

    //공격중??
    protected bool isAttack = false;
    protected bool isSwing = false;

    protected RaycastHit hitInfo;
    [SerializeField]
    protected LayerMask layerMask;

    protected void TryAttack()
    {
        if (!Inventory.inventoryActivated)
        {
            if (Input.GetButton("Fire1"))
            {
                if (!isAttack)
                {
                    StartCoroutine(AttackCoroutine());
                }
            }
        }
    }

    protected IEnumerator AttackCoroutine()
    {
        isAttack = true;
        currentCloseWeapon.anim.SetTrigger("Attack");

        yield return new WaitForSeconds(currentCloseWeapon.attackDelayA);
        isSwing = true;

        StartCoroutine(HitCoroutine());

        yield return new WaitForSeconds(currentCloseWeapon.attackDelayB);
        isSwing = false;

        yield return new WaitForSeconds(currentCloseWeapon.attackDelay - currentCloseWeapon.attackDelayA - currentCloseWeapon.attackDelayB);
        isAttack = false;
    }

    protected abstract IEnumerator HitCoroutine();//abstract 미완성 = 추상코루틴, 자식스크립트에서 완성예정

    protected bool CheckObject()
    {
        if (Physics.Raycast(transform.position, transform.forward /*transform.TransformDirection(Vector3.forward)은 같은 뜻*/, out hitInfo, currentCloseWeapon.range, layerMask))
        {
            return true;
        }
        return false;
    }

    //virtual, 완성 함수이지만 추가 편집이 가능한 함수
    public virtual void CloseWeaopnChange(CloseWeapon _closeWeapon)
    {
        if (WeaponManager.currentWeapon != null)
            WeaponManager.currentWeapon.gameObject.SetActive(false);

        currentCloseWeapon = _closeWeapon;
        WeaponManager.currentWeapon = currentCloseWeapon.GetComponent<Transform>();
        WeaponManager.currentWeaponAnim = currentCloseWeapon.anim;

        currentCloseWeapon.transform.localPosition = Vector3.zero;
        currentCloseWeapon.gameObject.SetActive(true);
    }
}



이번시간에는 플레이어에게서 레이어마스크가 잡히는 문제를 해결할 것이다

무슨 소리냐면 플레이어가 곡괭이로 공격을 하면 플레이어 자신이 콘솔에서 잡히는 문제점이다



GunController 스크립트를 열어서 밑줄친 부분을 작성해주자

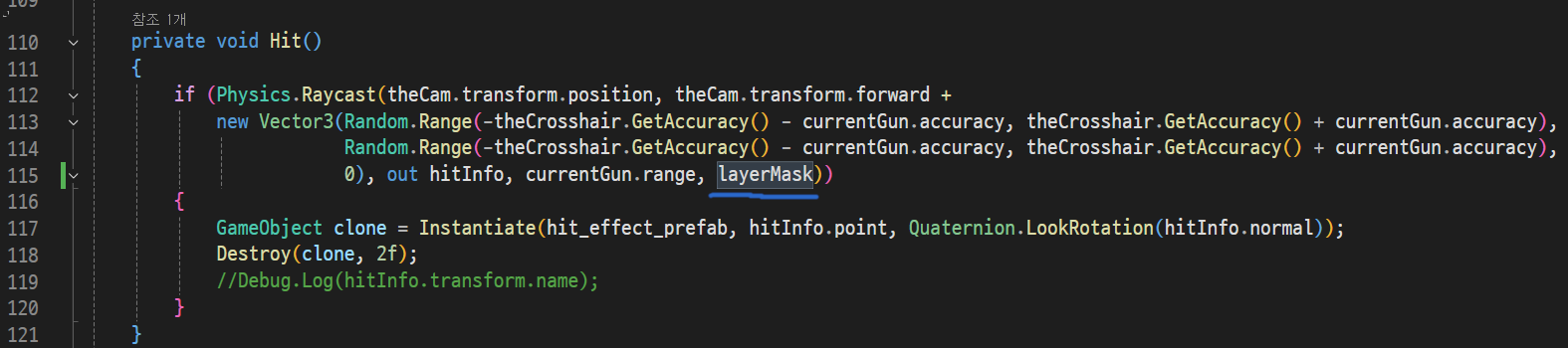

그리고 Hit부분에 layerMask 를 받아올 부분을 추가해주자

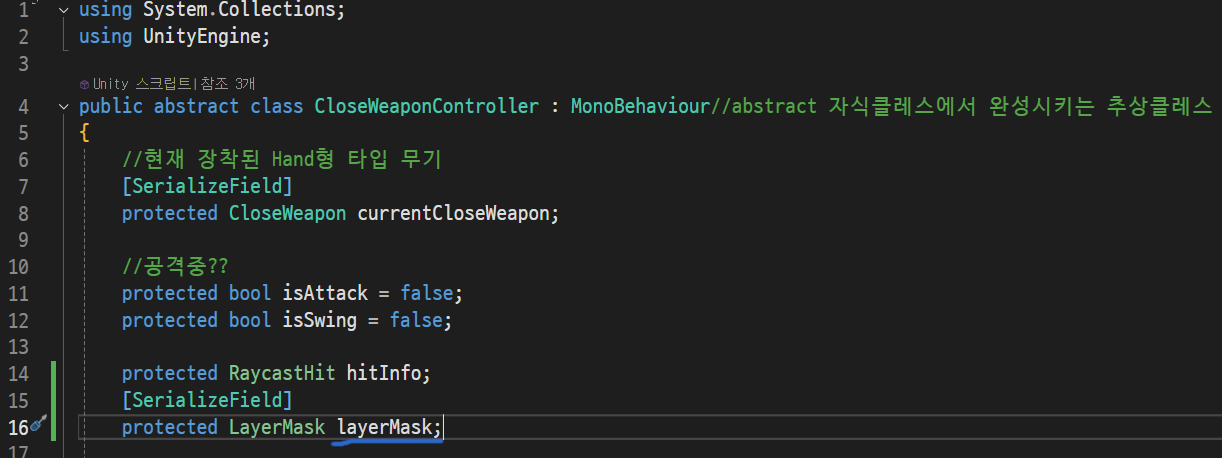

다음은 CloseWeaponController 스크립트를 열어서 밑줄 친 부분을 추가해주자

그뒤 함수에 밑줄친 부분을 추가해주자

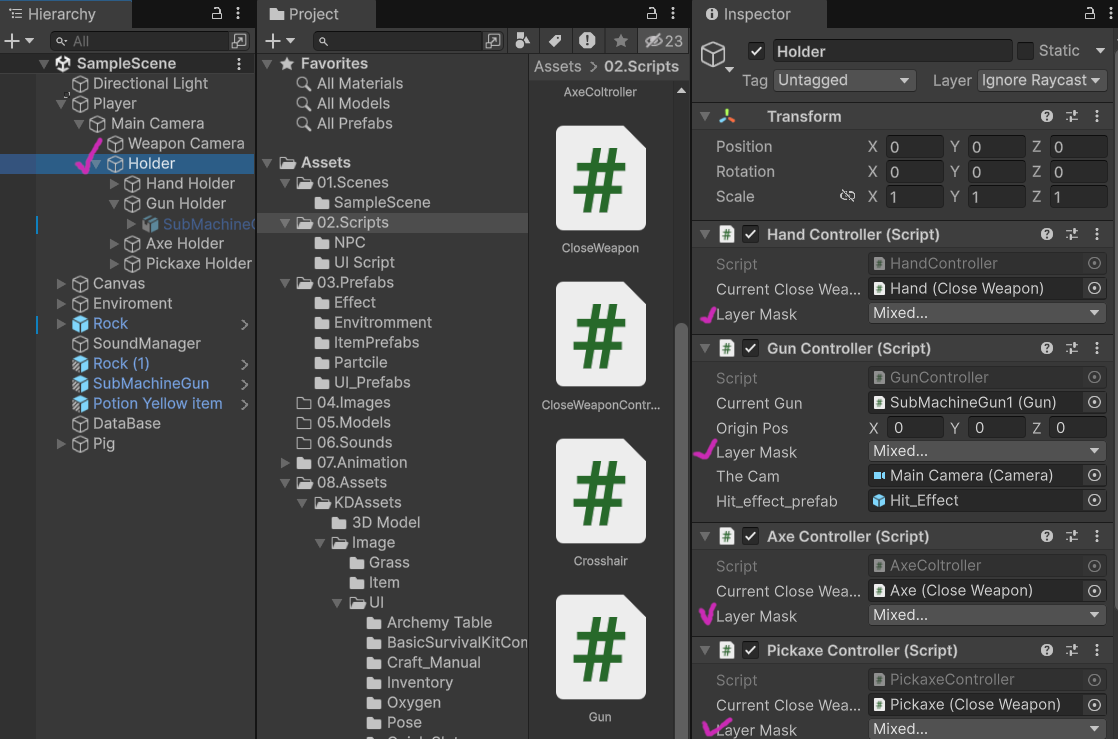

그러면 이렇게 표시한 부분이 추가되는데 이 부분이 감지할 객체를 선택해주는 것이다



Everything를 누른 다음 Ignore Raycaast와 Player부분의 체크를 해제해서 체크한 부분만 적중되게 하자



이번 강좌는 이것으로 끝이다
